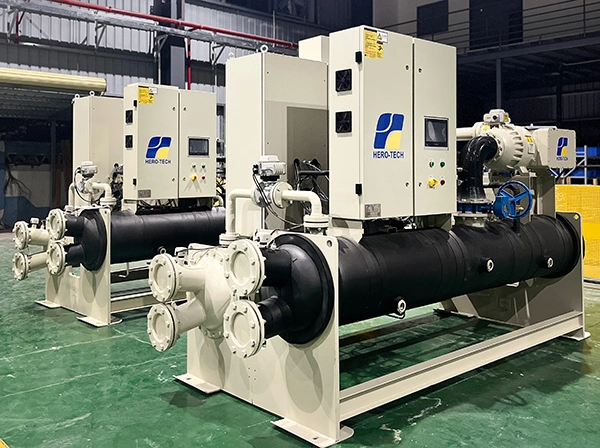

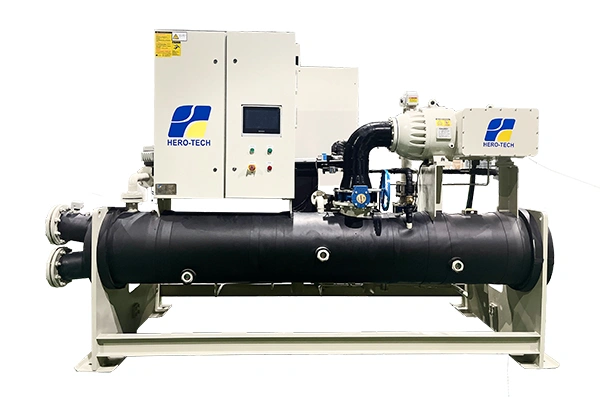

Magnetic Bearing Inverter Centrifugal Chiller

Industrial chiller with magnetic bearing inverter centrifugal compressor

Magnetic Bearing Inverter Centrifugal Chiller
  • Refrigerant: R134a
  • Power source: 3Ph 380V~415V 50Hz/60Hz
  • Compressor: Magnetic bearing inverter centrifugal compressor
  • Chilled water temperature range: +7°C to +35°C (adjustable temperature)
  • Min. dimensions (L×W×H): 3500×1350×1950mm
Request a Quote

Our magnetic bearing centrifugal chillers integrate high-speed direct-drive motors with frictionless magnetic bearing technology, eliminating the need for couplings, gearboxes, and conventional mechanical bearings entirely. This integration yields a simplified design characterized by no mechanical contact, zero wear, and maximum transmission efficiency—addressing the core pain points of traditional chiller systems (e.g., mechanical friction-induced wear and complex drivetrain maintenance).

A standout advantage of these chillers lies in their exceptional energy performance: their IPLV exceeds 12.5, and they deliver a potential energy savings of 30% to 50% when compared to standard chiller systems. This energy efficiency is further enhanced by the chiller’s two-stage compressor design, which incorporates inter-stage injection technology. Relative to traditional screw compressors or single-stage centrifugal compressors, this design boosts aerodynamic efficiency by 5% to 10%. More importantly, it expands the operational range, ensuring stable performance even under fluctuating load conditions.

Magnetic Bearing Inverter Centrifugal Chiller
Advantages
    Consistently High Thermal Performance
  • By eliminating mechanical friction and consequently obviating the need for lubricating oil, the chiller units achieve smooth operation. Simultaneously, the adoption of advanced heat exchange tubes increases turbulence, which improves heat transfer—this design sustains optimal efficiency over the long term.
    Quiet Operation

    The unit generates no noise from mechanical friction and is equipped with air cushions to isolate vibration. The compressor noise is below 77 dB(A), which eliminates the need for shock pads, spring shock absorbers, or soundproof enclosures.

  • 60 dB(A) – normal conversation
  • 70 dB(A) – loud speech
  • 85 dB(A) – average passing vehicle
    Enhanced Protection
  • Unlike conventional screw chillers, which have a starting current of up to 200A to 600A, the magnetic bearing inverter centrifugal chiller adopts soft start technology, reducing its starting current to a mere 6A. This extremely low starting current results in minimal impact on the power grid, eliminating the need for special protection measures.
    Eco-Conscious Refrigerant
  • Runs on R134a (HFC), a refrigerant recognized worldwide for its environmental safety profile.
Technical Specifications
Model: HTMV-*** 150S 200S 250S 300S 350S 400S 450S 500S 600S 700S 800D 900D 1000D 1100D 1200D 1300D 1400D
Nominal cooling capacity@7C kW 527 717 909 1055 1250 1407 1590 1760 2110 2465 2814 3180 3520 3870 4220 4570 4930
Input power kW 86 112 146 167 194 213 242 264 320 367 426 484 528 582 640 690 735
Coefficient of performance (COP) kW/kW 6.13 6.4 6.23 6.32 6.44 6.6 6.57 6.67 6.59 6.72 6.61 6.57 6.67 6.65 6.59 6.62 6.71
Energy efficiency ratio kW/RT 0.57 0.55 0.56 0.56 0.55 0.53 0.54 0.53 0.53 0.52 0.53 0.54 0.53 0.53 0.53 0.53 0.52
Condenser Shell and tube
Cooling water volume m³/h 105 143 176 210 248 279 315 348 418 487 557 630 696 766 836 905 974
Water pressure drop kPa 75 85 85 85 85 80 80 80 85 85 85 85 85 85 90 90 90
Pipe connection DN 150 200 200 200 200 250 250 250 250 250 300 300 300 300 350 350 350
Evaporator Falling-film evaporator
Cooling water volume m³/h 91 123 151 181 215 242 273 303 363 424 484 547 605 665 726 786 848
Water pressure drop kPa 70 80 80 80 80 60 60 60 80 80 80 80 80 80 85 85 85
Pipe connection DN 150 200 200 200 200 200 200 200 250 250 300 300 300 300 350 350 350
Unit dimensions /
Length mm 3500 4000 4000 4100 4100 4570 4570 4570 4850 4850 5500 5500 5500 5800 5800 5800 5800
Width mm 1350 1500 1500 1750 1750 2400 2400 2400 2500 2500 2680 2680 2680 2800 2800 2800 2800
Height mm 1950 2000 2000 2350 2350 2600 2600 2600 2600 2600 2650 2650 2650 2850 2850 2850 2850
Net weight kg 4800 5400 5800 6100 6500 7000 7500 8000 9000 10000 12500 13000 13500 14000 14800 15600 16400
Running weight kg 5000 5700 6100 6600 7000 7700 8300 8800 10000 11000 14500 15000 15500 16000 17000 17600 18400
Refrigerant charge kg 135 180 225 270 315 380 410 450 540 630 720 810 9000 990 1080 1170 1080
The data mentioned above is based on the following design conditions:
  • Chilled water inlet/outlet temperature: 12 °C / 7 °C
  • Condensing temperature: 40 °C; evaporating temperature: 5 °C
  • Cooling water temperature range: 17 °C to 37 °C
  • Chilled water temperature range: 5 °C to 35 °C

Note: We reserve the right to modify the specifications without further notice.
