Water-Cooled Scroll Chiller

Packaged water-cooled chiller with scroll compressor

Water-Cooled Scroll Chiller
  • Cooling capacity: 3 ton to 120 ton
  • Refrigerant: R22/R407C/R410A (for standard applications)
  • Power source: 380V 50Hz 3Ph
  • Compressor brand: Panasonic, Danfoss, Bitzer, Copeland, Invotech
  • Chilled water temperature range: +5°C to +35°C (adjustable temperature)
  • Temperature control accuracy: ±1°C to 2°C
  • Min. dimensions (L×W×H): 1190×597×1240mm
Request a Quote

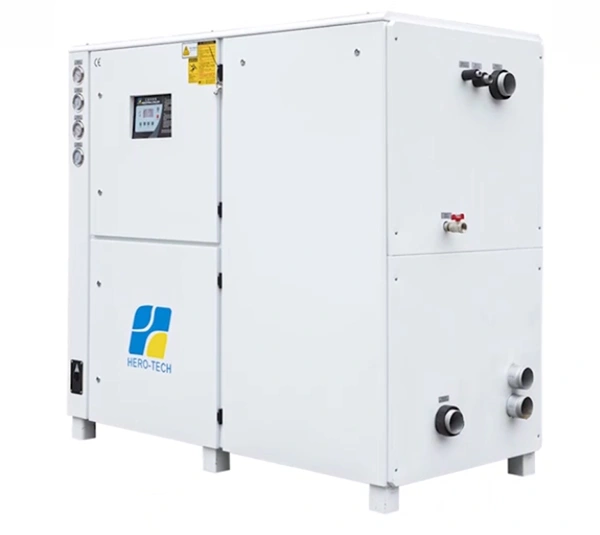

Water-Cooled Scroll Chiller

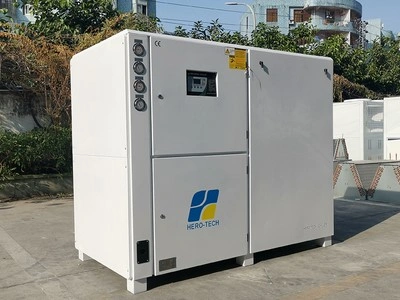

HTI-30WD Water-Cooled Scroll Chiller
Water-Cooled Scroll Chiller

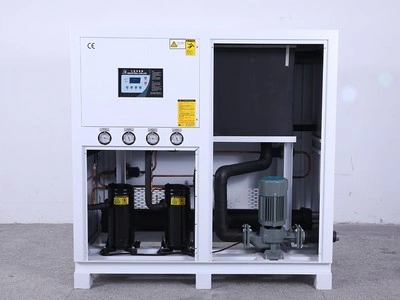

HTI-8-10-12WD Water-Cooled Scroll Chiller
Water-Cooled Scroll Chiller

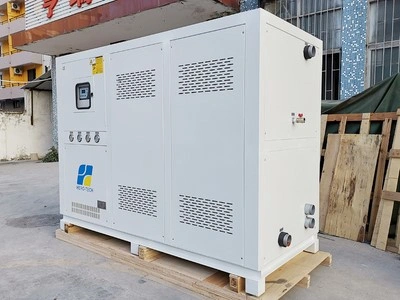

HTI-3-5-6W Water-Cooled Scroll Chiller
Features
  • The microcomputer controller is combined with branded electrical components to achieve precise temperature regulation and support automatic fault diagnosis to ensure stable and reliable operation of the unit.
  • Multiple protection functions are provided, including high and low pressure protection, compressor overload protection, cooling water pump and chilled water pump overload protection, phase sequence monitoring, water flow or water level detection, high water temperature alarm, anti-freeze protection, etc.
  • Liquid cooling improves overall efficiency while keeping operating noise below 75 dB, providing a quieter, more environmentally friendly solution.
Optional
  • High-pressure water pump, stainless steel water pump
  • R134A, R513A or other refrigerants
  • RS-485 communication interface
  • Corrosion-resistant water circuit
  • Explosion-proof chiller unit
Typical Applications
  • In plastics processing, water-cooled scroll chillers cool molds during injection molding, extrusion, and blow molding, helping to reduce deformation, improve surface quality, and maintain high production efficiency.
  • Chemical and pharmaceutical operations use scroll chillers for precise temperature control in reaction vessels, stable cooling during drug synthesis, and steady fermentation tank conditions that keep processes consistent and product quality reliable.
  • In food production, they handle rapid cooling after sterilization, manage temperatures for dairy pasteurization and beer fermentation, and provide pre-cooling in cold storage environments.
  • For metalworking and machinery, water-cooled scroll chillers lower the temperature of cutting fluids, welding units, and machine tool hydraulic systems, minimizing thermal distortion and extending tool life.
  • Electronics and electroplating benefit from consistent cooling for semiconductor manufacturing equipment and plating baths, ensuring stable performance of components and a high-quality finish on coatings.
  • In hospitals and laboratories, chillers help maintain the temperature under control in operating rooms, medical imaging systems such as MRI scanners are properly cooled, and precision instruments in labs operate under stable conditions.
Water-Cooled Scroll Chiller
Water-Cooled Scroll Chiller
Water-Cooled Scroll Chiller
Technical Specifications
Model (HTI-***) 3W 5W 6W 8WD 10WD 12WD 15WD 20WD 25WD 30WD 40WF 50WF 60WF
Nominal cooling capacity 7℃ kcal/h 7834 11704 14783 20106 23684 29566 35991 51170 59512 75164 102340 119110 144514
kW 9.11 13.61 17.19 23.38 27.54 34.38 41.85 59.5 69.2 87.4 119 138.5 168.04
12℃ kcal/h 9468 14095 18206 23753 28190 36412 43163 60716 70864 86172 121260 141900 172447
kW 11.01 16.39 21,17 27.62 32.78 42.34 50.19 70.6 82.4 100.2 141 165 200.52
Input power kW 2.61 3.82 4.38 5.85 7.54 8.66 10.02 14.75 16.78 23.26 29.3 33.36 44.52
Power source 3Ph 380V~415V 50Hz/60Hz
Refrigerant Type R22/R407C/R410A
Control Capillary tube Thermostatic expansion valve
Compressor Type Hermetic scroll compressor
Power kW 2.24 3.27 3.83 2.65×2 3.27×2 3.83×2 4.36×2 6.57×2 7.59×2 9.84×2 6.57×4 7,59×4 9.84×4
Condenser Type Shell and tube condenser
Cooling water volume m³/h 1.67 2.93 3.16 4.98 5.85 7.24 9.37 13.3 15.5 18.58 24.7 30.9 37.14
Pipe connection kW 1 1 1 1-1/2 2 2 2 2 2 3 3 3 3
Evaporator Type SS tank with SS coil/ shell and tube evaporator
Chilled water volume (7℃) m³/h 1.55 2.58 3.09 4.13 5.2 6.2 7.74 10.3 12.9 15.8 20.6 25.7 30.9
Tank volume liter 60 60 90 150 200 200 330 330 350 450 580 620 620
Pipe connection inch 1 1 1 1-1/2 2 2 2 2 2 3 3 3 3
Pump Power kW 0.37 0.55 0.55 0.55 1.0 1.0 1.3 1.6 1.6 3.0 3.0 3.0 4
Head m 20 20 20 20 20 20 20 20 20 20 20 20 20
Safety devices
  • Compressor internal protection
  • Overcurrent protection
  • High/low pressure protection
  • Over temperature protection
  • Flow rate protection
  • Phase sequence/phase missing protection
  • Low level coolant protection
  • Anti-freezing protection
  • Exhaust overheat protection
Dimensions Length mm 1190 1190 1190 1330 1330 1330 1810 1810 1810 1940 2510 2510 2775
Width mm 597 597 597 770 770 770 990 990 990 950 1190 1190 1220
Height mm 1240 1250 1250 1480 1480 1480 1650 1650 1650 1750 1900 1900 2130
Net weight kg 125 160 180 230 260 330 420 460 680 720 870 980 1120
The data above is calculated under the following design conditions:
  • Chilled water inlet/outlet temperature: 12 °C / 7 °C
  • Cooling water inlet/outlet temperature: 30 °C / 35 °C

Note: Cooling capacity of the R407C unit is approx. 5% lower than that of the R22 unit.
Optional refrigerants: R407C/R410A /R134A
We reserve the right to modify specifications without further notice.
