Air-Cooled Scroll Chiller

Packaged air-cooled chiller with scroll compressor

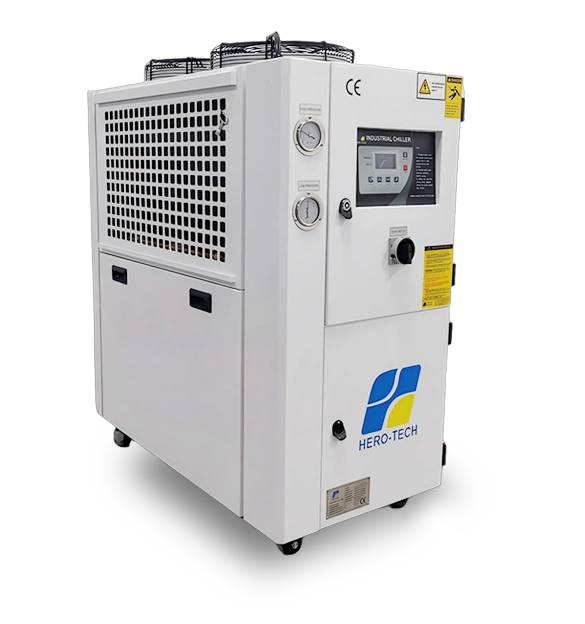

Air-Cooled Scroll Chiller
  • Cooling capacity: 0.3 ton to 120 ton
  • Refrigerant: R22/R407C/R410A (for standard applications)
  • Power source: 380V 50Hz 3Ph
  • Compressor brand: Panasonic, Danfoss, Bitzer, Copeland, Invotech
  • Chilled water temperature range: +5°C to +35°C (adjustable temperature)
  • Temperature control accuracy: ±1°C to 2°C
  • Ambient temperature: -10°C to +35°C (standard design)
  • Min. dimensions (L×W×H): 600×400×1100mm
Request a Quote

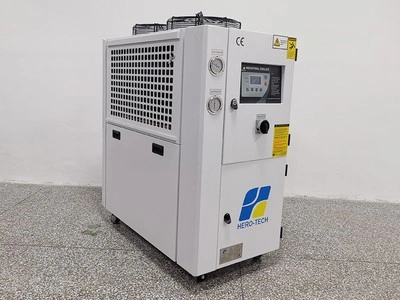

Air-Cooled Scroll Chiller with Single Compressor HTI-A
Air-Cooled Scroll Chiller with Single Compressor

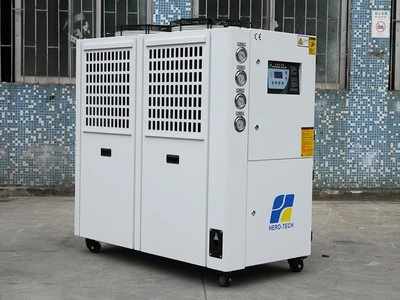

Air-Cooled Scroll Chiller with Dual Compressors HTI-**AD
Air-Cooled Scroll Chiller with Dual Compressors

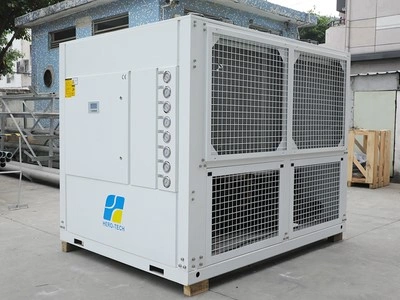

Air-Cooled Scroll Chiller with Four Compressors HTI-**AF
Air-Cooled Scroll Chiller with Four Compressors
Features
    Microcomputer Control
  • Bilingual interface (Chinese–English or Chinese–Russian) for easy switching.
  • Temperature stability is maintained between ±1°C and ±2°C.
  • User-friendly operation with an intuitive status display.
  • High-quality components from Schneider Electric (France) and Siemens (Germany) ensure reliable performance and long service life.
    Wide Range of Applications and Low Maintenance
  • Air-cooled finned condensers operate efficiently in a variety of environments and are easy to install, clean, and maintain.
  • No cooling tower or external water pump is required, as heat is removed solely through ambient air. This reduces water usage, minimizes maintenance requirements, and achieves a high coefficient of performance (COP).
    Space-Saving and Flexible Installation
  • Our air-cooled scroll chillers feature a compact design that can be installed on rooftops or in confined spaces, saving valuable floor space.
  • We offer both open and closed cabinet models to suit different site requirements, and some models are equipped with casters for easy mobility.
Typical Applications
  • Ideally suited for cooling molds in injection molding and extrusion processes, helping shorten production cycles and producing smoother, higher-quality product surfaces.
  • Maintain stable operating temperatures in laser cutting machines and vacuum coating equipment, protecting precision components and ensuring reliable performance in electronic and semiconductor devices.
  • In the chemical and pharmaceutical industries, air-cooled scroll chillers control the temperatures of reactors and crystallization processes, maintaining process stability and ensuring consistent product quality.
  • Ideal for maintaining a constant temperature for laboratory equipment such as mass spectrometers and nuclear magnetic resonance systems, ensuring accurate and repeatable test results.
  • Suitable for battery production lines and casting processes in the new energy and automotive industries, improving cooling efficiency, accelerating production, and enhancing product reliability.
  • Support cooling in shopping malls, hotels, and other large buildings, with the option of multiple units working together to increase cooling capacity.
  • Efficiently dissipates heat in data centers, workshops, and other large spaces, helping control energy consumption and maintain stable temperatures.
Optional
  • High-pressure water pump, stainless steel water pump
  • R134A, R513A or other refrigerants
  • RS-485 communication interface
  • Corrosion-resistant water circuit
  • Explosion-proof chiller unit
  • Ambient temperature options of -40°C to -10°C and +45°C to +55°C

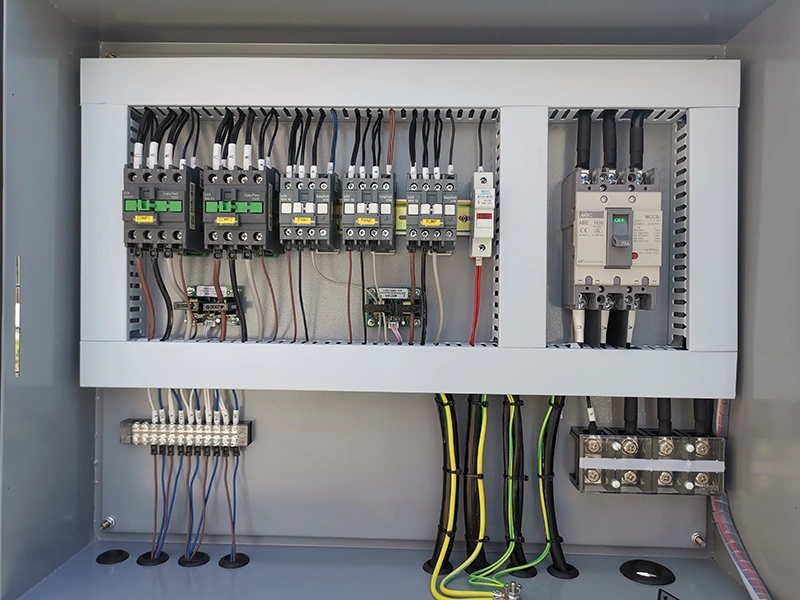

Electrical Control Cabinet
Electrical Control Cabinet

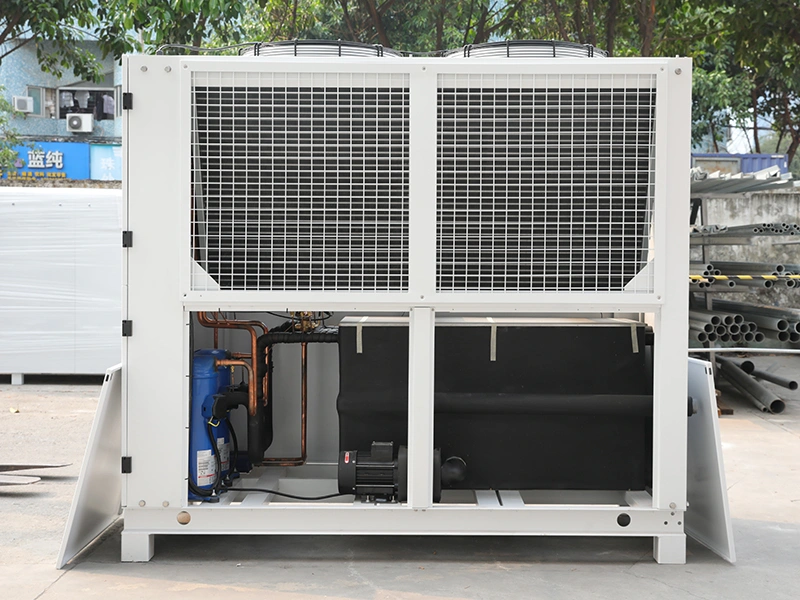

Internal Structure
Internal Structure
Technical Specifications
Model (HTI-***) 1/2A 1A 2A 3A 5A 6A 8AD 10AD 12AD 15AD 20AD 25AD 30AD 30AT 40AF 50AF 60AF
Nominal cooling capacity 7℃ kcal/h 1075 1935 4214 5848 10836 12556 17595 21414 26522 32216 46861 54644 68215 70292 93740 109220 129447
kW 1.25 2.25 4.9 6.8 12.6 14.6 20.46 24.9 30.84 37.46 54.49 63.5 79.3 81.735 109 127 150.52
12℃ kcal/h 1634 2838 5074 6966 12642 15050 21328 25370 30272 38889 55788 64663 81631 83682 111542 129000 155109
kW 1.9 3.3 5.9 8.1 14.7 17.5 24.8 29.5 35.2 45.22 64.87 75.19 94.92 97.305 129.7 150 180.36
Input power kW 0,895 1.4 2.24 3.15 4.82 5.56 7.37 9.66 11.4 12.68 18.46 20.72 29 28.09 36.82 41.34 56.4
Power source 1Ph 220V 50Hz/60Hz 3Ph 380V~415V 50Hz/60Hz
Refrigerant Type R22/R407C/ R410A
Control Capillary tube Thermostatic expansion valve
Compressor Type Hermetic rotary compressor Hermetic scroll compressor
Power kW 0.45 0.89 1.73 2.69 3.91 4.65 3.16×2 3.91×2 4.65×2 5.14×2 7.63×2 8.76×2 11.9×2 7.63×3 7.63×4 8.76×4 11.9×4
Condenser Type High-efficiency aluminum finned coil + large volume low noise axial fan
Air volume m³/h 2700 2700 3700 5400 7400 7400 9000 13000 13000 15600 23200 23200 30000 30000 40000 50000 60000
Fan power kW 0.095 0.14 0.18 0.14×2 0.18×2 0.18×2 0.25×2 0.42×2 0.42×2 0.55×2 0.8×2 0.8×2 0.55×4 0.55×4 0.55×6 0.55×6 0.8×6
Evaporator Type SS tank with SS coil/ shell and tube evaporator
Chilled water volume (7℃) m³/h 0.258 0.476 0.908 1.36 2.22 2.6 3.52 4.44 5.03 7.1 8.84 10.06 13.6 13.6 17.75 21.9 25.9
Tank volume liter 10 18 27 50 60 110 120 200 200 270 350 350 420 420 580 580 580
Pipe connection inch 1/2 1/2 1/2 1 1 1 1-1/2 2 2 2 2 2 3 3 3 3 3
Pump Power kW 0.37 0.37 0.37 0.37 0.55 0.55 0.55 1 1 1.3 1.6 1.6 3 3 3 3 4
Head m 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Safety devices
  • Compressor internal protection
  • Overcurrent protection
  • High/low pressure protection
  • Over temperature protection
  • Flow rate protection
  • Phase sequence/phase missing protection
  • Low level coolant protection
  • Anti-freezing protection
  • Exhaust overheat protection
Dimensions Length mm 600 600 650 1030 1180 1180 1430 1630 1630 1910 2070 2070 2050 2050 2330 2450 2900
Width mm 400 400 520 560 580 580 700 760 760 850 950 950 1500 1500 1700 1800 1950
Height mm 1110 1110 1120 1270 1305 1305 1470 1680 1680 1840 1980 1980 1890 1890 1965 2060 2080
Net weight kg 45 52 85 132 165 183 265 345 382 580 650 810 890 900 1112 1320 1560
Data provided above is based on the following design conditions:
  • Chilled water inlet/outlet temperature: 12°C / 7°C
  • Cooling air inlet/outlet temperature: 35°C / 43°C

Note: Cooling capacity of the R407C unit is approx. 5% lower than that of the R22 unit.
Optional refrigerants: R407C/R410A /R134A
We reserve the right to modify specifications without further notice.

Tell us about your project

We customize and deliver industrial chillers and process cooling equipment to match your specifications

Contact Us
Customize

Air-cooled chillers adapt well to a wide range of operating conditions. They are easier to install, require less maintenance, and can be used in many applications. However, for the same cooling capacity, their material cost is usually higher compared to water-cooled models.

Water-cooled chillers are more suitable when there is a stable water supply, good water quality, and ambient temperatures below 45 °C. They generally offer better cooling performance, lower energy consumption, and quieter operation. Their overall cost can be slightly lower, but installation is more complex as they require a cooling tower and water pump. Cleaning and servicing the shell-and-tube condenser also calls for trained technicians.

We operate under a strict ISO management system that oversees every stage of production. Quality checks are applied to all incoming materials, manufacturing processes, and testing stages. Customers may arrange third-party inspections before delivery as well to make sure that the chiller is working smoothly.

The main components we use for our chillers are sourced from well-known international brands to ensure long-term reliability. Skilled technicians with advanced welding certifications handle critical processes. Our products are CE certified and exported to over 100 countries, backed by strong customer feedback.

We are manufacturers. We have two production bases plus two component-processing plants. All design, production, and sales are handled in-house. We can customize non-standard chillers or develop tailored solutions according to client requirements, offering both OEM and ODM services.

For medium to large scale facilities, the cooling demand is greater, and the cooling equipment must operate continuously without interruptions. In such cases, screw chillers are often the best option. Depending on site conditions, you might consider a water-cooled screw chiller for higher energy efficiency where water supply is stable, or an air-cooled screw chiller for easier installation and lower water usage.

In sites where there’s limited space, scroll chillers are an excellent choice. Their compact design allows them to fit into smaller areas while still providing reliable cooling performance, making them ideal for small-scale or space-restricted installations.
