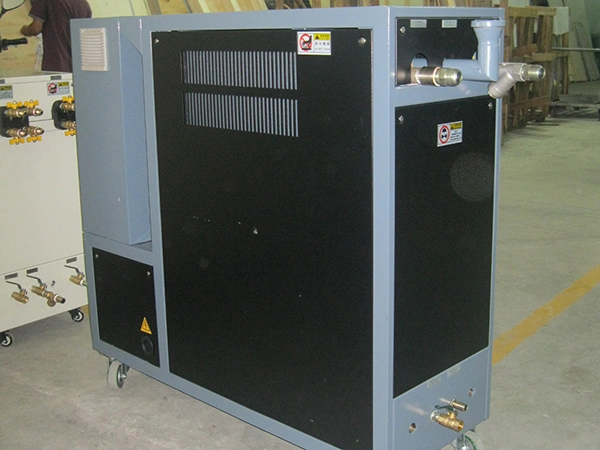

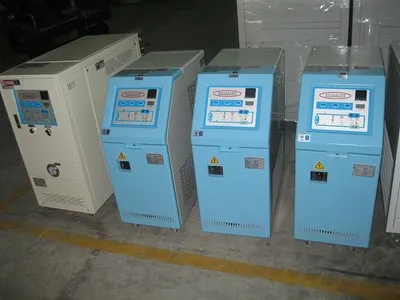

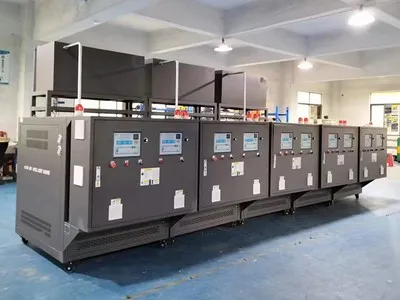

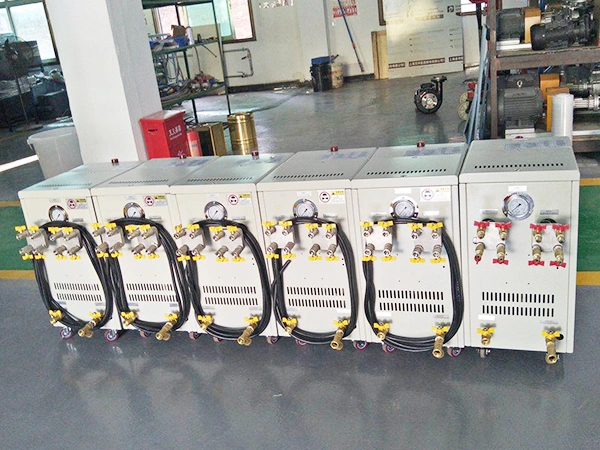

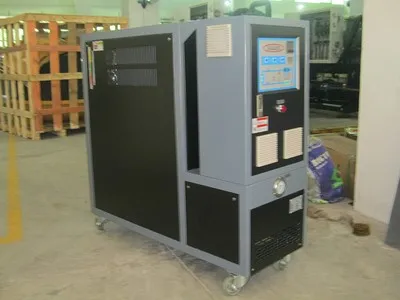

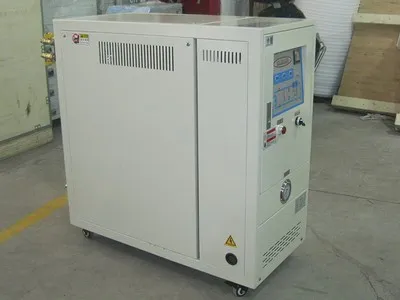

Mold Temperature Controller

Precision Water & Oil Temperature Control Systems for Molds

Maintaining precise and stable mold temperature is essential for producing consistent, high-quality molded parts. Mold Temperature Controllers (MTCs) circulate water or thermal oil to actively manage the heat within the mold, ensuring thermal stability throughout the entire production cycle.

This precise temperature regulation directly contributes to fewer production defects, improved surface finish quality, and enhanced overall manufacturing efficiency. As a result, these systems are indispensable across a wide range of industries, including plastic injection molding, die-casting, rubber processing, chemical manufacturing, and the production of advanced composites.

Request a Quote

Advantages

High efficiency and precise temperature control Equipped with a PID intelligent temperature control system, the unit maintains constant temperatures through segmented heating control, effectively minimizing energy waste.
A dual-power heating design allows flexible power adjustment according to load requirements.
Comprehensive safety protection Features an automatic fault alarm system with protections including phase-loss detection, over-temperature protection, and leakage protection. In the event of a fault, the power supply is automatically cut off to ensure operational safety.
Incorporates explosion-proof construction and high-pressure, high-temperature pumps to prevent accidents caused by oil or water circuit failures.
Durability and versatility Key components such as heating elements, pumps, and heat exchangers are made from stainless steel or corrosion-resistant materials, with a service life exceeding 100,000 hours.
Designed to operate in high-temperature environments (up to 350°C) or low-temperature conditions (below 0°C).
Supports both water circulation (water temperature controllers) and thermal oil circulation (oil temperature controllers).
Smart control system and ease of operation A microcomputer control system enables automatic fault diagnosis, reducing the need for manual intervention.
Automatic air purging and forced cooling functions shorten heating/cooling cycles, improving production efficiency.

Applications

Injection molding and plastics processing

Controls mold temperature to minimize deformation, sink marks, and other defects, increasing molding efficiency in applications such as mobile phone housings and automotive parts

Die-casting and metalworking

Maintains stable temperatures for magnesium and aluminum alloy molds, preventing thermal stress deformation and extending mold lifespan

Rubber and tire manufacturing

Provides temperature control for mixers, vulcanizers, and similar equipment, optimizing the vulcanization process and reducing defective product rates

Chemical and reactor applications

Delivers precise temperature regulation for reactors, preventing overheating that could cause chemical decomposition or explosion risks

Emerging industrial applications

Ensures temperature stability for high-precision processes such as carbon fiber hot-press forming, light guide plate molding, and mold temperature control in 3D printing

Technical Specifications

Mode (HTM-***)			6O	9O	12O	6OH	9OH	12OH	6W	9W	12W	9WH	24WH	36WH
Heat transfer medium			Oil						Water
Temperature range		℃	40~180			40~200			30~120			30~180
Heating power		kW	6	9	12	6	9	12	6	9	12	9	24	36
Power source		3Ph 380V-50Hz/60Hz
Pump	Motor power	kW	0.37	0.75	1.5	0.37	0.75	1.5	0.37	0.75	1.5	0.75	1.5	2.2
	Max. flow	Vmin	35	55	95	35	55	95	35	90	180	95	153	235
	Max. pressure	kg/cm²	2.2	2.2	2.8	2.2	2.2	2.8	2.0	2.2	2.4	11	11	11
Cooling method		Indirect cooling							Direct cooling			Indirect cooling
Pipe connection	External pipe diameter	inch	1/2	1	1	1/2	1	1	1/2	1/2	1	1	1	1
	Number of inlet & outlet		2×2	2×2	2×2	2×2	2×2	2×2	2×2	2×2	2×2	2×2	2×2	2×2
	Cooling water pipe diameter	inch	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Dimensions	Depth	mm	630	630	1100	630	630	1100	620	624	880	700	880	880
	Width	mm	325	325	420	325	325	420	325	325	420	360	420	420
	Height	mm	745	745	1050	745	745	1050	645	645	850	815	850	850
Net weight		kg	68	75	85	68	75	85	62	72	75	75	95	103

Note:

Water pressure should be greater than 2kg/cm² when water type mold temperature controller is connected to tap water.
If there are any special requirements, please keep us informed.
We reserve the right to modify the specifications without further notice.
