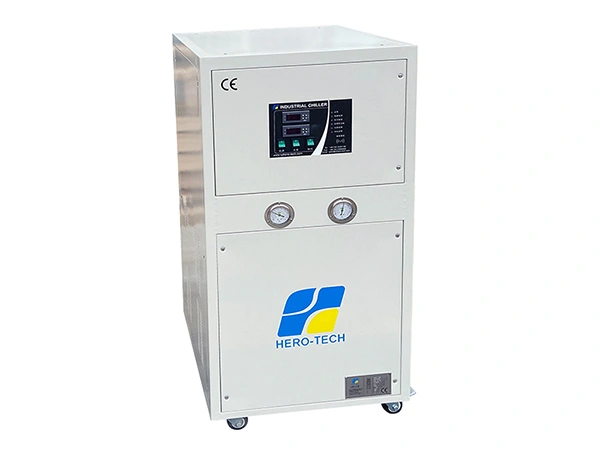

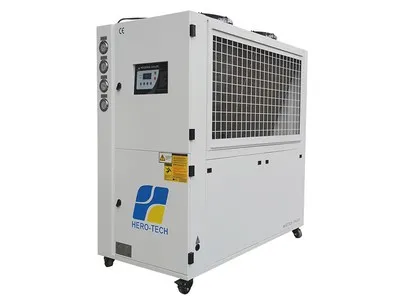

Oil Chiller

Industrial Chillers for Machine Tool Lubricant and Hydraulic Oil Cooling

Oil chillers provide specialized cooling for the lubricating and hydraulic systems essential to various machine tools. They are widely used in precision machinery such as CNC machine tools, coordinate boring machines, grinders, machining centers, and modular machines to cool spindle lubricant and hydraulic power unit oil.

By maintaining the oil temperature at or below ambient levels, our chillers effectively minimize thermal deformation in the machine tool structure. This results in improved machining accuracy, smoother operation, and more consistent performance—even during extended production cycles.

Our oil chillers deliver efficient and reliable cooling by leveraging the inherent advantages of oil as a heat transfer fluid. They are engineered to meet the rigorous demands of modern industrial equipment, ensuring enhanced process stability and prolonged machine service life.

Request a Quote

Advantages

High-precision temperature control and stability The oil chiller keeps oil temperature within a set range, generally 10-30°C with a tolerance of ±1-2°C, effectively reducing thermal deformation in machine tools and improving machining accuracy. Equipped with a PID intelligent temperature control system, it allows the oil temperature to be adjusted in sync with the ambient temperature, preventing mechanical components from warping due to temperature differences.
Energy-saving and environment friendly Uses eco-friendly refrigerants such as R407C, R410A, or R134a, ensuring zero pollutant emissions while maintaining efficient cooling performance.
Durability and safety Key components, including stainless steel pumps and fin-type condensers, are made from corrosion-resistant materials for long service life. Multiple built-in protection functions such as phase-loss alarms, over-temperature protection, and leakage protection, ensure safe and reliable operation.

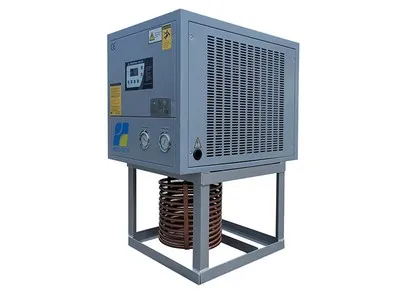

Adaptability and flexibility Customizable to fit CNC machine tools, hydraulic presses, grinders, and other equipment. Supports parallel operation of multiple units for flexible load matching. The immersive oil cooling design prevents contamination from metal chips, making maintenance simple and straightforward.

Applications

Precision machining

CNC machine tools / grinders: Cools spindle lubricating oil to minimize thermal expansion errors and improve machining accuracy, for example, in coordinate boring machines and machining centers
Electrical discharge machines (EDM): Maintains stable temperatures for electrodes and workpieces, helping extend tool life

Hydraulic systems and power equipment

Used in hydraulic presses, injection molding machines, and similar equipment to prevent high-temperature degradation of hydraulic oil, maintain stable viscosity, and avoid pressure fluctuations

Mold and industrial forming

Cools injection molds to shorten molding cycles and reduce surface defects in plastic products

Specialized industrial applications

Power equipment: Cools bearing lubrication oil in generator sets
Chemical industry: Regulates reactor temperatures to mitigate overheating risks

Technical Specifications

Model (HTO-***)			1/2A	1A	1-1/2A	2A	3A	5A	6A	8AD	10AD
Design type			Packaged type oil chiller
Nominal cooling capacity		kcal/h	1616	3242	4859	6475	8677	13046	16193	21328	32379
Nominal cooling capacity		kW	1.88	3.77	5.65	7.53	10.09	15.17	18.83	24.8	30.34
Input power		kW	0.915	1.4	2.25	2.46	3.53	5.58	6.87	8.6	10.64
Power source			1Ph 220V 50HZ				3Ph 380V-415V 50Hz/60Hz
Oil temperature range			20℃ to 35℃
Refrigerant	Type		R22
Refrigerant	Control		Capillary tube						Thermostatic expansion value
Compressor	Type		Hermetic rotary compressor				Hermetic scroll compressor
Compressor	Motor power	kW	0.45	0.89	1.52	1.73	2.5	4.12	4.87	3.3×2	4.12×2
Condenser	Type		Aluminum finned coil condenser + high-flow low-noise axial fan
	Cooling air flow	m³/h	750	1000	1500	2000	3000	5000	6000	8000	10000
	Fan power	kW	0.095	0.14	0.18	0.18	0.14*2	0.18*2	0.18*2	0.25*2	0.45*2
Evaporator	Type		High-efficiency aluminum finned coil + large volume low noise axial fan
	Chilled oil volume	m³/h	1.08	1.8	2.3	3.6	5.4	9	10.4	14.4	18
	Pipe connection	inch	1/2	1/2	1/2	1/2	3/4	1	1	1-1/2	1-1/2
Oil pump	Power	kW	0.37	0.37	0.55	0.55	0.75	1.1	1.1	1.5	1.5
Oil pump	Head	m	20	20	20	20	20	20	20	20	20
Safety devices			Inner thermostat for compressor motor Overload relay High and low pressure switch Anti-freeze protection Reverse phase protection relay Discharge gas thermostat Flow switch
Dimensions	Length	mm	550	600	650	650	1030	1030	1170	1350	1550
	Width	mm	350	400	520	520	560	560	610	680	760
	Height	mm	755	885	1030	1030	1330	1330	1390	1520	1680
Net weight		kg	45	52	65	85	132	165	183	275	355

The above specifications are based on the following design conditions:

Chilled water inlet/outlet temperature: 12°C / 7°C
Cooling air inlet/outlet temperature: 30°C / 38°C

Note: Units using R407C refrigerant have approximately 5% lower cooling capacity compared to R22 models.
We reserve the right to modify the specifications without further notice.
