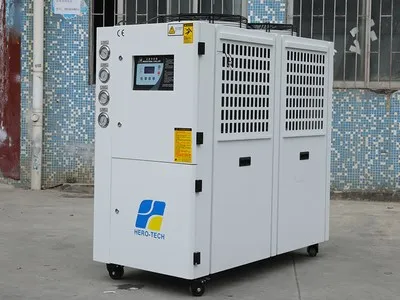

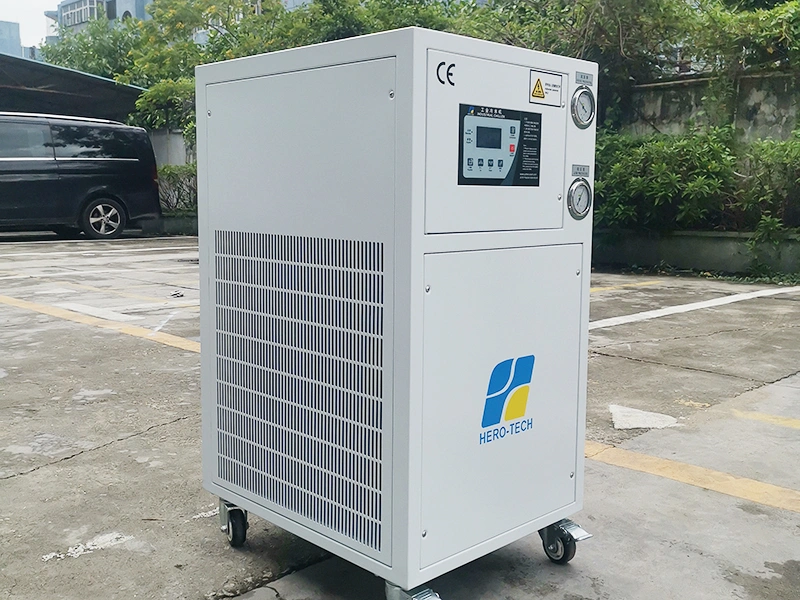

Laser Chiller

Water Chillers for Industrial Laser Cooling

Industrial lasers generate significant amounts of thermal energy during operation. Excess heat can negatively impact performance, reduce efficiency, and shorten the service life of the equipment. Our laser chillers are engineered to effectively manage this thermal load by efficiently removing heat and transferring it away from the laser system. With precision temperature control, our chillers help maintain operating stability and protect sensitive components from heat-related damage.

These chillers are widely used in various laser processing applications, including marking, welding, coding, and cutting systems. By maintaining the optimal operating temperature, our laser chillers contribute to consistent processing quality, extend equipment lifespan, and enhance production reliability—even in demanding working environments. Our high-quality laser cooling solutions deliver dependable performance for the most challenging industrial applications.

Request a Quote

Advantages

High-efficiency cooling and temperature control The laser chiller rapidly absorbs the heat generated by laser equipment through a closed-loop refrigeration system, ensuring stable operating temperatures. For example, during laser cutting or welding, temperature control accuracy can reach ±0.1°C, preventing beam quality degradation caused by temperature fluctuations.
Using compressor-based refrigerant circulation technology such as scroll compressors, it delivers high cooling efficiency with low energy consumption.
Precise adaptation to different laser types Custom cooling solutions are available for CO₂ laser tubes, semiconductor lasers, fiber lasers, ultraviolet lasers, and more, meeting the specific cooling requirements of different power levels and wavelengths.
Eco-friendly and energy-saving Environmentally friendly refrigerants such as R407C, R410A, and R134a are used, ensuring zero pollutant emissions. Integrated heat recovery technology helps reduce overall energy consumption.
Certain models support modular design, allowing multiple units to operate in parallel for flexible load matching.
Compact structure and durability Compact design allows for both indoor and outdoor installation, saving valuable space.
Key components such as evaporators and water pumps are made of stainless steel for excellent corrosion resistance and long service life.
Smart protection system and easy operation Equipped with flow alarms, over-temperature as well as leakage protection to ensure safe operation. Supports PLC or microcomputer control for remote monitoring and fault self-diagnosis.

Applications

Industrial laser processing

Cutting/engraving: Used with fiber laser cutting machines, CO₂ laser engraving systems, and similar equipment to prevent material deformation or beam drift caused by excessive heat, for cleaner metal and silicon cuts
Welding/marking: In automotive manufacturing and electronics processing, stabilizes laser output power to improve machining precision

Medical and research fields

Cools medical laser devices such as cosmetic systems and surgical lasers, ensuring safe and effective treatment
Maintains stable temperatures for precision laboratory instruments, including atomic absorption spectrometers and scanning electron microscopes, to improve data reliability

Other industrial applications

Plastics processing: Cools injection mold tooling to reduce surface marks and speed up setting time
Power and chemical industries: Cools generators or chemical reaction equipment to prevent overheating and equipment failure

Technical Specifications

Model (HTL-***)			1/2A	1A	1.5A	2A	3A	5A	6A	8AD	10AD	12AD	15AD	20AD
Nominal cooling capacity		kacl/h	1419	2385	3264	4592	8677	13046	16193	21328	26092	32387	34572	49364
Nominal cooling capacity		kW	1.25	2.2	3.5	4.9	6.78	12.46	14.86	21.12	24.92	29.32	36.02	50.6
Input power		kW	0.895	1.4	2.07	2.24	3.45	5.23	5.98	7.85	10.64	12.14	14.34	18.6
Power source			1Ph 220V 50Hz/60Hz				3Ph 380V~415V 50Hz/60Hz
Refrigerant	Type		R22/R407C
Refrigerant	Control		Capillary tube									Thermostatic expansion valve
Compressor	Type		Hermetic rotary compressor				Hermetic scroll compressor
Compressor	Power	kW	0.45	0.89	1.52	1.73	2.8	4.12	4.87	3.3×2	4.12×2	4.87×2	5.47×2	8.1×2
Condenser	Type		Copper tube and aluminum finned coil + high-flow low-noise axial fan
	Cooling air flow	m³/h	750	1000	1500	2000	3000	5000	6000	8000	10000	12000	15000	20000
	Fan power	kW	0.095	0.14	0.18	0.18	0.14×2	0.18×2	0.18×2	0.25×2	0.45×2	0.45×2	0.6×2	0.8×2
Evaporator	Type		Shell and tube evaporator/SS plate heat exchanger
	Chilled water volume (7℃)	m³/h	0.258	0.476	0.59	0.908	1.36	2.22	2.6	3.52	4.44	5.03	7.1	8.84
	Tank volume	liter	16	16	20	20	50	60	110	120	200	200	270	350
	Pipe connection	m³/h	1/2	1/2	1/2	1/2	1	1	1	1-1/2	2	2	2	2-1/2
Pump	Power	kW	0.37	0.37	0.37	0.37	0.37	0.75	0.75	0.75	1.5	1.5	2.2	2.2
Pump	Head	m	20	20	20	20	20	20	20	20	20	20	20	20
Flow switch			Operate flow > 3.5L/min Release flow < 1.4L/min				Operate flow > 16L/min Release flow < 10L/min
Safety devices			Inner thermostat for compressor motor Overload relay High and low pressure switch Anti-freeze protection Reverse phase protection relay Discharge gas thermostat Flow switch
Dimensions	Length	mm	550	600	650	650	1030	1030	1170	1350	1550	1550	1830	2010
	Width	mm	350	400	520	520	560	560	610	680	760	760	850	950
	Height	mm	755	885	1030	1030	1330	1330	1390	1520	1680	1680	1870	1990
Net weight		kg	45	52	75	85	132	165	183	265	345	382	580	650

The above specifications are based on the following design conditions:

Chilled water inlet/outlet temperature: 12°C / 7°C
Cooling air inlet/outlet temperature: 30°C / 38°C

Note: Units using R407C refrigerant have approximately 5% lower cooling capacity compared to R22 models.
We reserve the right to modify the specifications without further notice.
